(AI KB) Import Survey Using "Field Computer Receive" "Mobile From Disk" (PCS: AX/Mesa3)

Purpose of Article: Guide you through steps to importing PS Survey via Mobile From Disk method in Field Computer Receive on PCS.

Note: PS Survey files must already be placed on computer before proceeding. If unsure follow guide linked below to ensure steps already completed.
(AI KB) Preparing PS Survey Files for "Mobile From Disk" Import Method (PCS: AX/Mesa3)

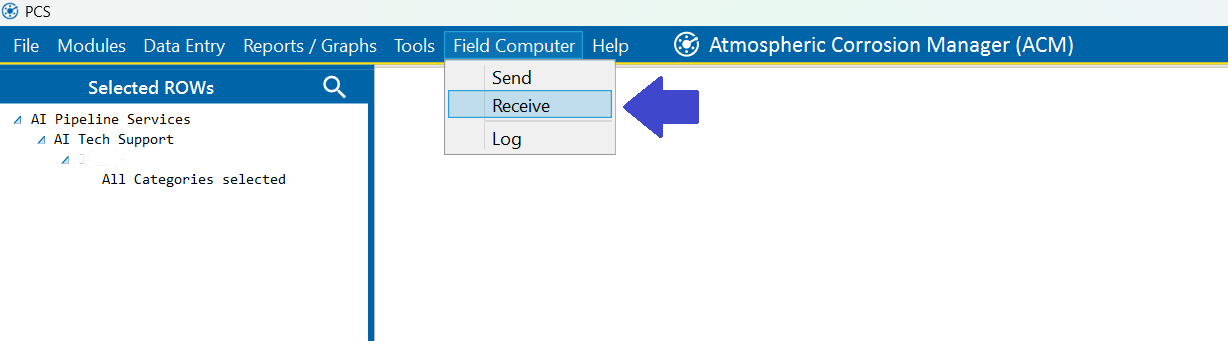

1. Within PCS, navigate to Field Computer, once you see drop down select Receive.

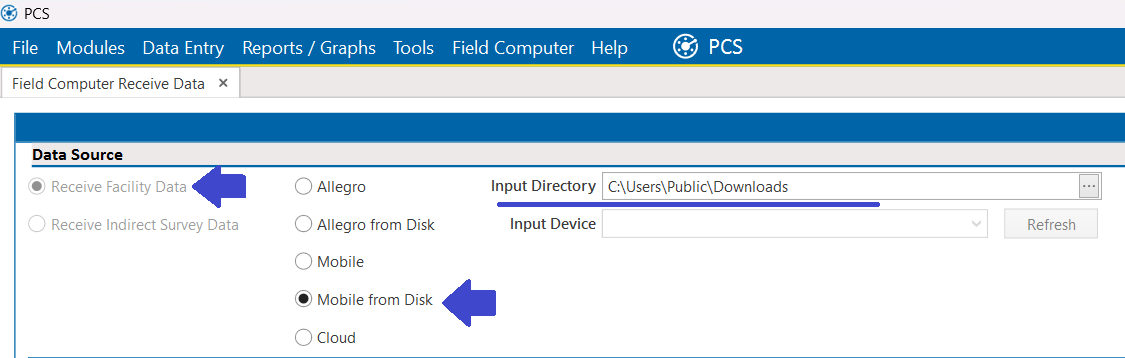

2. Set Data Source to Receive Facility Data and Mobile From Disk, make sure Input Directory is correct to where PS Survey files were placed in computer directory.

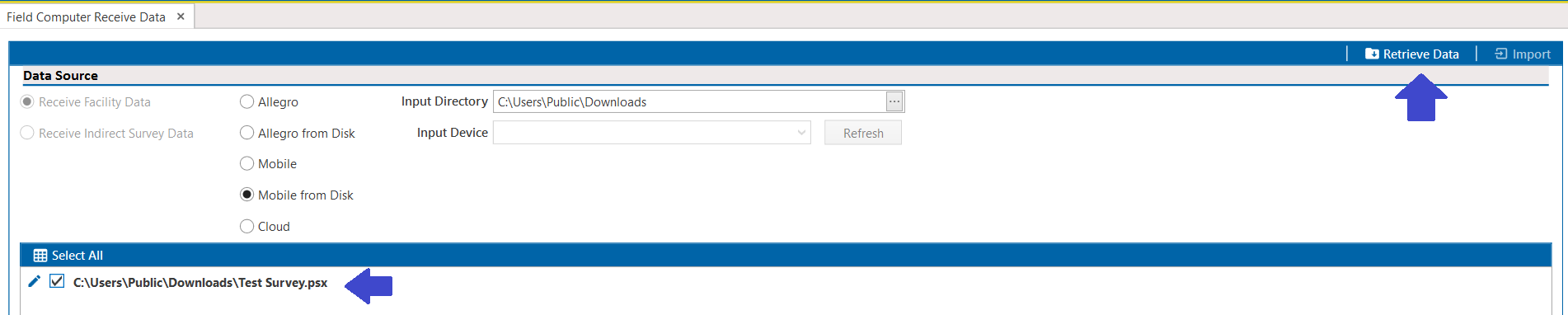

3. Now select Retrieve Data on upper right corner and survey PSX file will now populate.

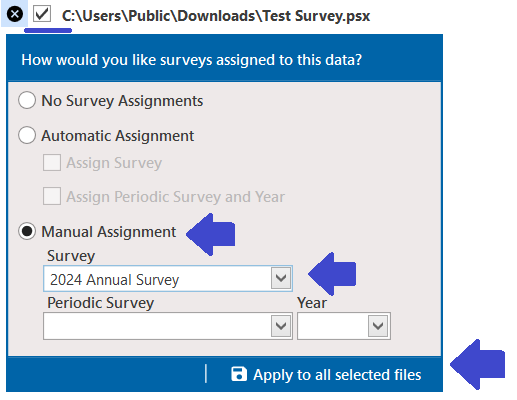

4. Check Box for survey and select Manual Assignment, now you can categorize it accordingly. Once assigned select Apply to all selected files.

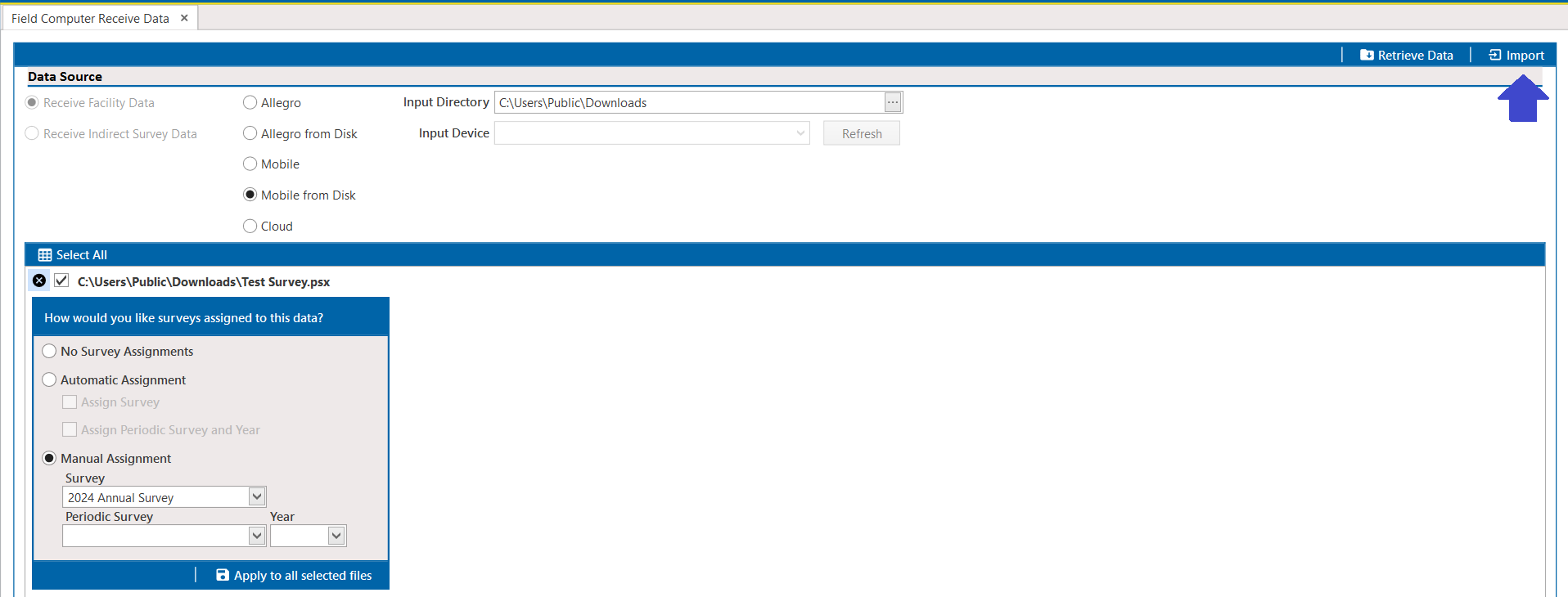

5. Select Import, which is found on upper right hand side of page. Survey now successfully imported into PCS.




6. For further assistance, submit technical support ticket via https://www.aiworldwide.com/contact-support/
