(AI KB) PCS: Add a Pipeline/Right of Way to the Hierarchy

This article will provide instructions on adding a "Right of Way" (ROW).

1. Launch the PCS application

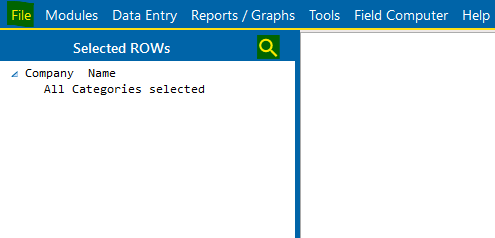

2. Click on the   icon on the "selected ROWs title bar ( or double-click in the pane or select File> Select ROWs) To open the Select ROWs window.

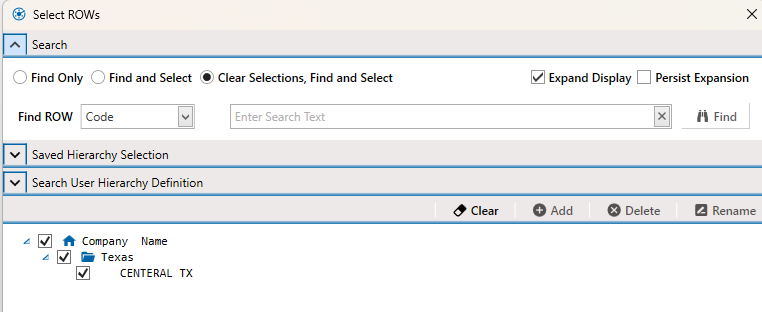

Selected ROWs window:

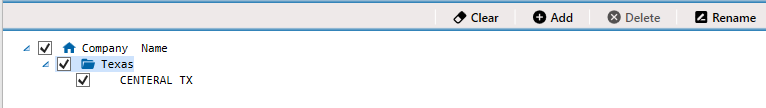

3.  Select the folder in the hierarchy you want to add a pipeline.

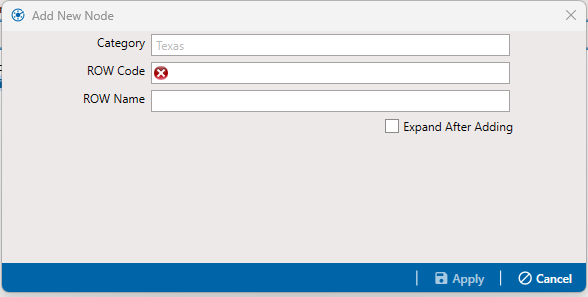

4. Click the to open the add new Node window.

5. you can also open the add a new node window by right-clicking a selection in the hierarchy tree and selecting the  in the shortcut menu.

6.  Enter a pipeline code for the new pipeline in the ROW Code field. Fields requiring information include a  red icon, such as ROW Code.

The names of hierarchy folders, as well as ROW Code and ROW Name fields, support up to 100 characters.

7. Type a name for the pipeline in the ROW Name field.

8. Click the option Expand After Adding if you want to expand the selection tree after clicking Apply.

9. Click  Apply. Repeat these steps as needed to add another pipeline in a selected hierarchy folder.
