(AI KB) PCS: How to send survey to FDC through the cloud

Purpose: To show how to send a survey to Survey Manager and then how send survey to PCS FDC

First: To send a survey to PCS FDC first you will go to PCS Field computer send.

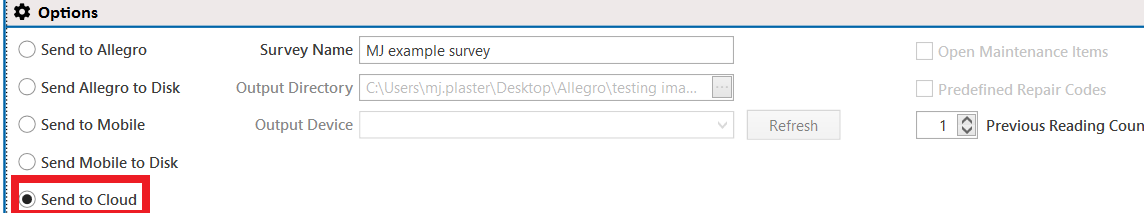

1. Select the Send to Cloud option


2. Then fill out the 'Survey Name' and any other options such as previous readings count.



3. Click 'Apply' and check over the facilities at the bottom to make sure that only facilities that are needing to be surveyed are included.

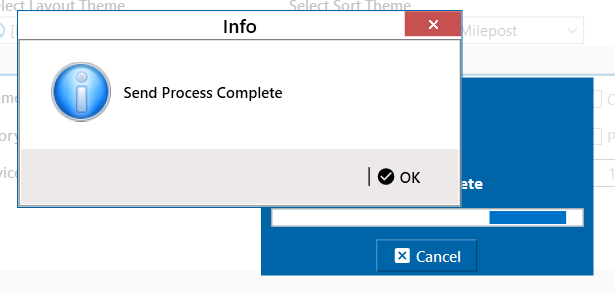

4. Click 'Send' and wait until a text window pops up that says 'Complete'




Second: Import Survey Into Survey Manager

1. In the navigation bar go down the list until reach the 'Survey Section' and press the plus (+) Icon.

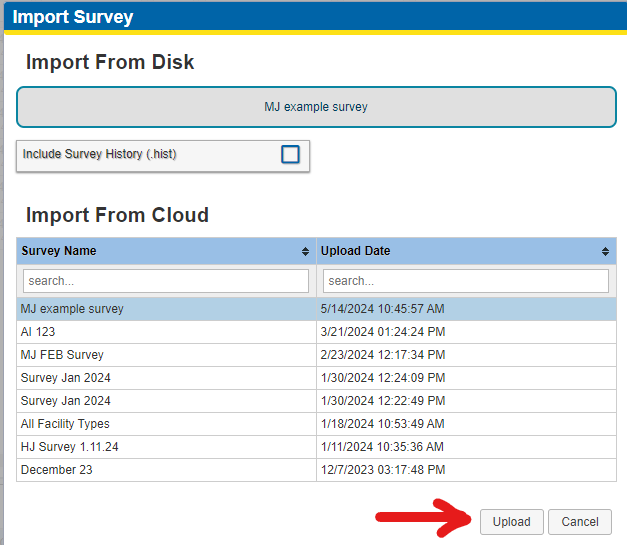

2. Locate the Survey File, that was created in PCS, then select 'Upload'.



3. The survey will now be in the survey list. Double click on the Survey to Open it.



4. After the Facilities have loaded in the grid. select icon with Three People (Reference Image)

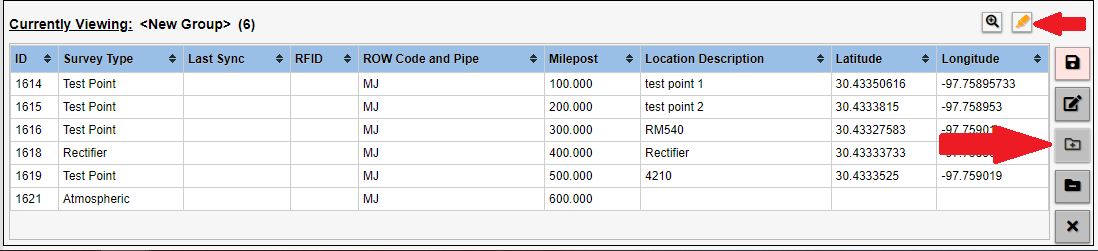

5. In the 'Currently Viewing' section either press the Yellow Marker icon to select points on map (Note: Only works if there are GPS in facilities) or Select the Folder Icon with the Plus (+) in it to add all points.



6. Press the Pencil icon with the check box to save the Group and Name it.
   Note: The name of the group will be what appears on the mesa so name the group in a way that help identify the survey.



7. In 'Saved Groups' select the three horizontal lines and assign to the PCS Field Data Collector Account that the Survey needs to be taken with.



Your Survey should now be available within PCS Field Data Collector, ready to be Completed by your Technician
