(AI KB) Select or Change the Milepost Format in PCS

Complete the following steps to select a default location format:

1. Click File > Select ROWs to open the Select ROWs window.



   Select ROWs



2. Select one or more pipelines, and then click Save to close the window.

3. Click Data Entry > Edit ROW Detail to open the Edit ROW Detail window. Ensure that the Information tab is selected.



   Edit ROW Detail Window - Information Tab

4. Select a Layout Theme and Sort Theme. Optionally, select Only the most recent information record for each facility check box. Click Apply.

5. Select a pipeline in the Information grid.

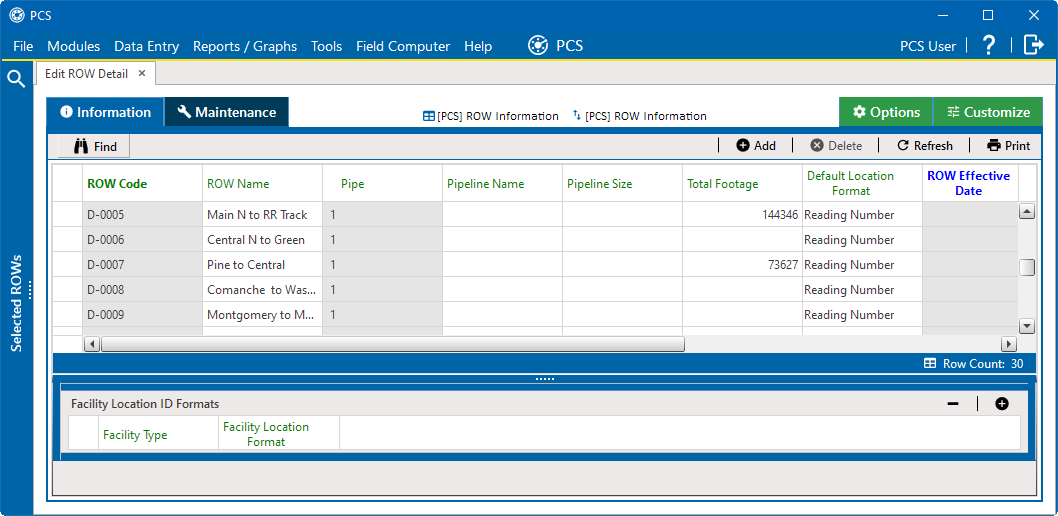

   Information Tab with Records

6.  In the Default Location Format field, select a location format in the drop-down list. Refer to Understanding Default Location Formats for a description of available options.

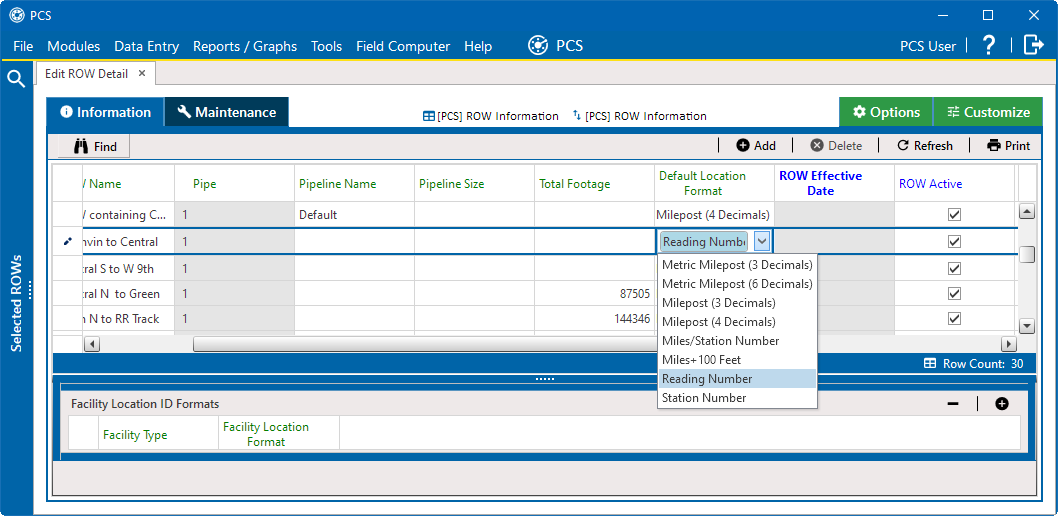

   Default Location Format Drop-down List

7. In the Facility Location ID Formats mini-grid, click Add A list of all facility types display in the mini-grid with the selected location format.

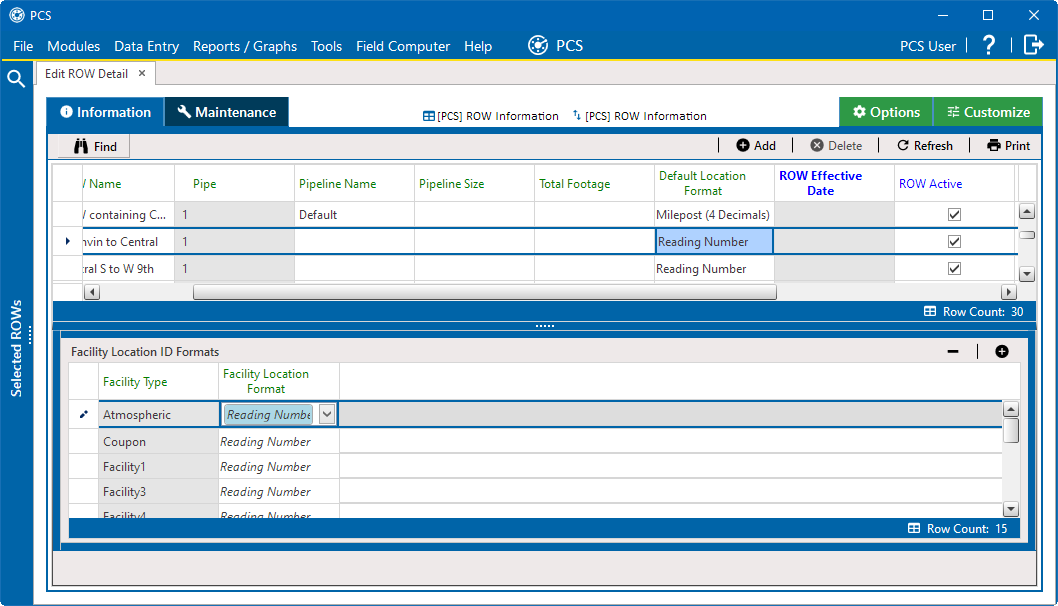

   Facility Location ID Formats Mini-grid

   Complete the following steps if you want to change the location format for a particular facility type listed in the mini-grid:

   1. Select a row of records in the mini-grid with the facility type you want to change the location format.

   2. In the Default Location Format field, select a location format in the drop-down list

8. Set up other pipeline information as needed.

9. Click Refresh.

10. When finished, click the x close icon to close the Edit ROW Detail window.
